Tilt Lock Channel System Tilt Lock Channel System

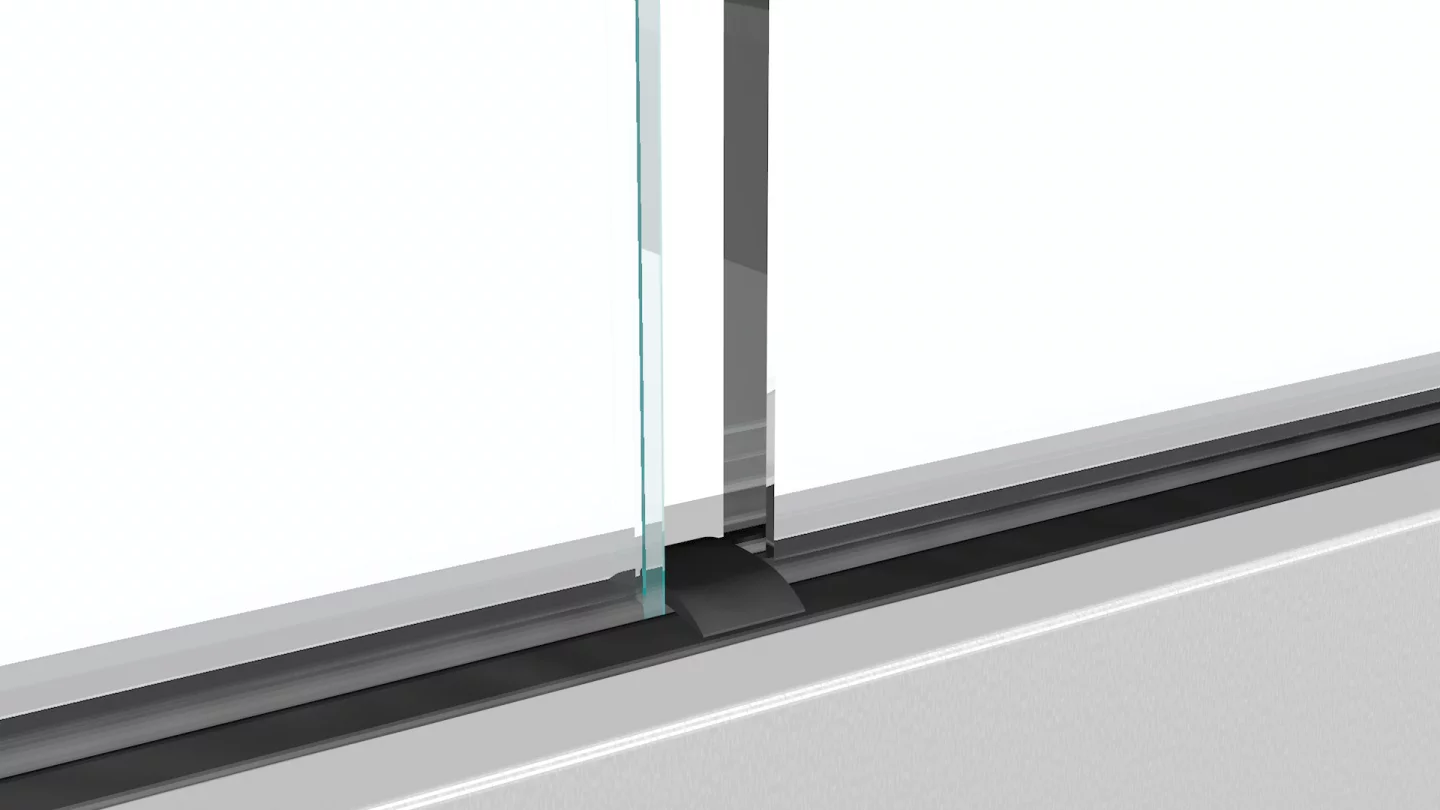

The Tilt-Lock Channel System is a robust architectural solution for frameless glass balustrades, suited to residential and light commercial applications where clean lines and installation flexibility are key. The system uses a high-strength aluminium channel combined with a patented rotating pressure plate mechanism that securely clamps the glass without the need for holes.

A defining feature of Tilt-Lock is its generous internal tilt adjustment, allowing glass panels to be plumbed accurately from the inside of the balcony or deck. This is particularly valuable on uneven substrates or retrofit projects, reducing site tolerance issues and simplifying installation logistics for Glass Projects’ installation teams.

Key attributes of the Tilt-Lock Channel System include:

• Internal Tilt Adjustment: Up to ±30mm adjustment achieved from one side, allowing precise alignment without external access.

• Patented Clamp System: Rotating pressure plates clamp glass securely within the channel, with no holes required in the glass.

• Multiple Installation Options: Available as top-mounted, side-fixed, or fully recessed channel configurations.

• Wide Glass Compatibility: Designed to accommodate safety glass thicknesses from 12mm through to 21.52mm.

• Durable Aluminium Construction: Heavy-duty aluminium extrusion with anodised cover options, suitable for New Zealand conditions.

• Efficient Installation: Pre-drilled channel and kitset components support faster, more predictable installation on site.

• Compatible Glass Products: Tilt-Lock can accommodate a variety of Glass Projects’ specialised glass types, including:

  • Pro Tuf (Toughened Glass): Strength and safety. An interlinking handrail is required where the balustrade is protecting a fall of 1 meter or more. Refer to the Tilt-Lock design information.

  • Pro LSG Tuf (Laminated Toughened Glass): Strength with enhanced safety. An interlinking handrail or stiffener brackets are required where the balustrade is protecting a fall of 1 meter or more. Refer to the SmartLock design information.

  • Pro LSG Tuf + (Laminated Toughened Glass with a Stiff/Rigid Interlayer): A premium product offering both enhanced strength and safety. Handrails or stiffener brackets are not necessary, provided each glass panel meets the required width & height requirements. Refer to the Tilt-Lock design manual.

  • Pro Ultra Clear (Low Iron Glass): For maximum clarity and light transmission, Pro Ultra Clear can be used in the products listed above.

The Tilt-Lock Channel System is well-suited to projects that require a frameless balustrade solution with flexibility in fixing and tolerance for site variation. It is commonly specified for high-end residential work and apartment or mixed-use developments where aesthetics, durability, and buildability are all critical.

Common applications include:

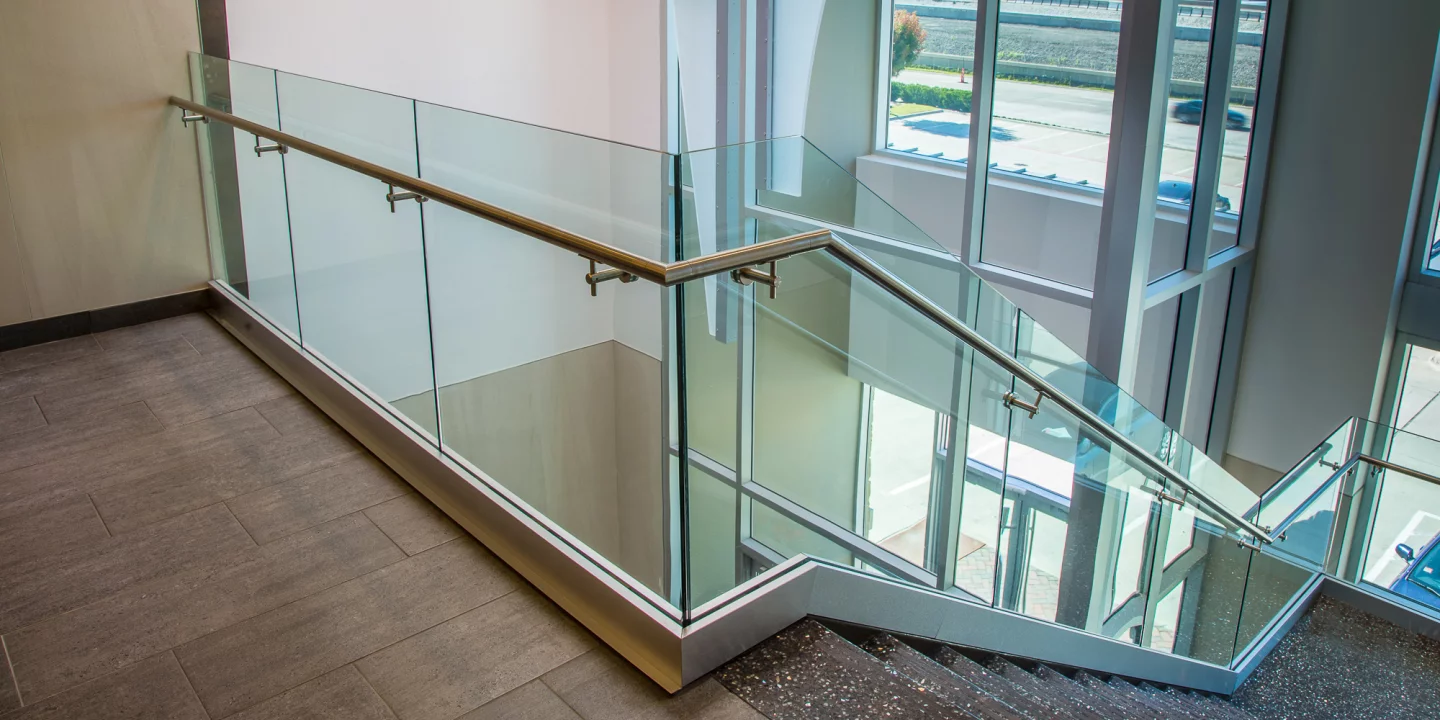

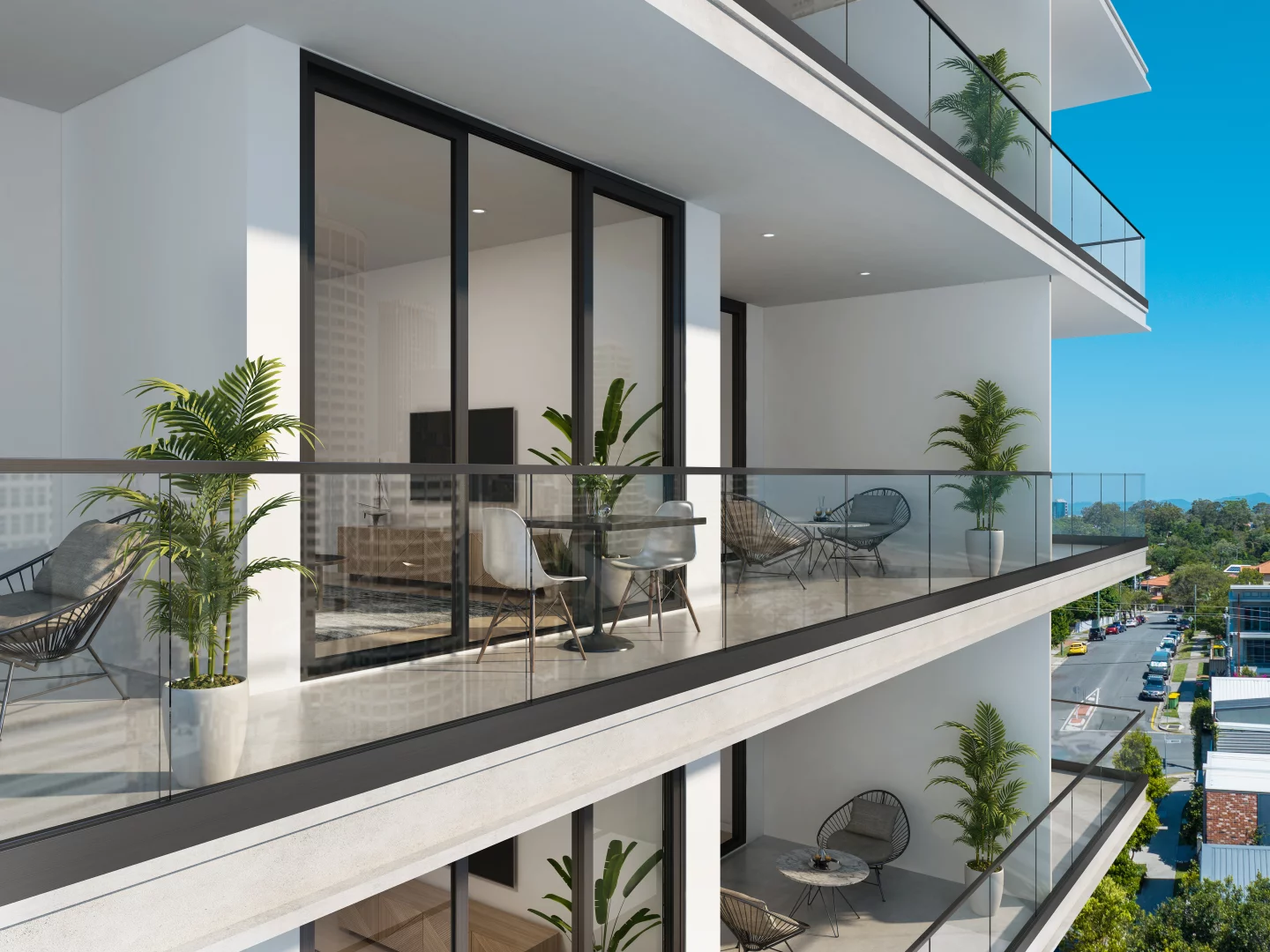

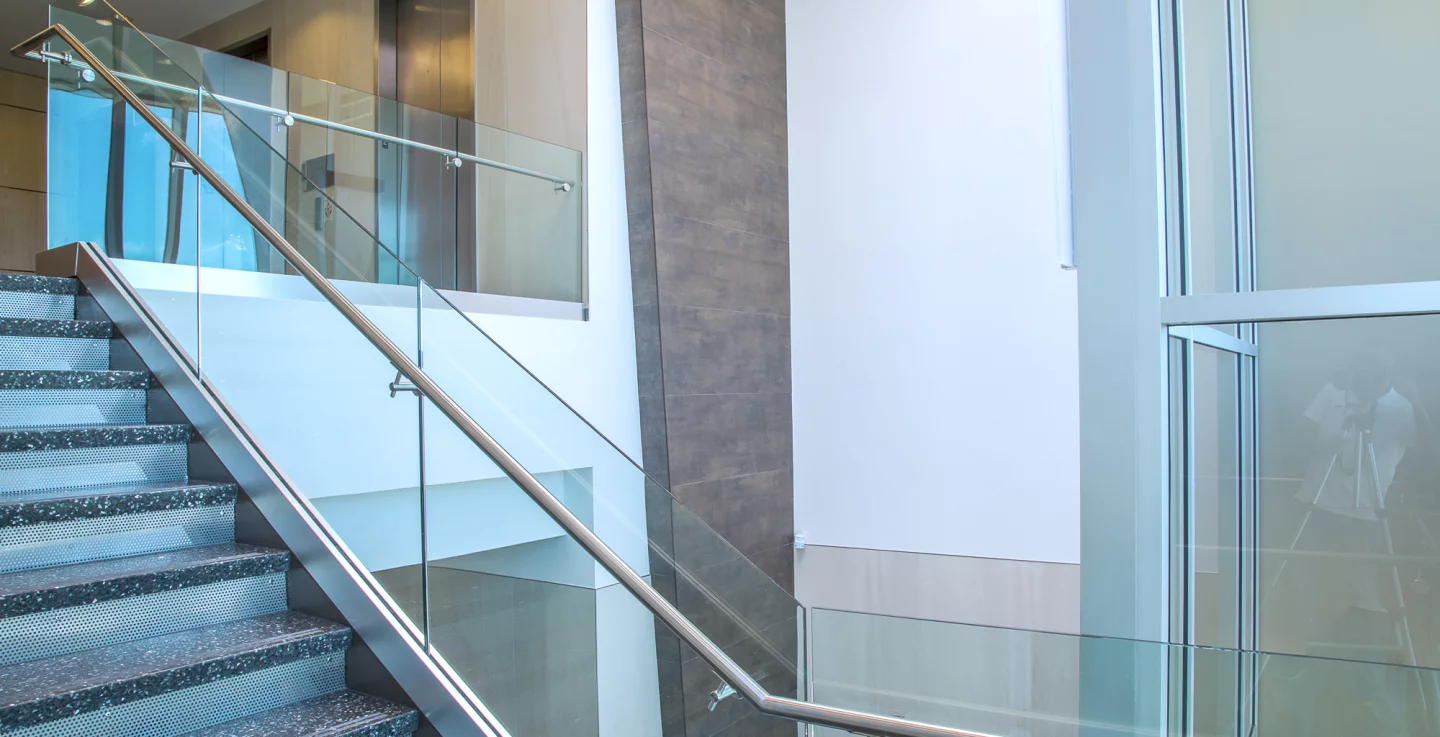

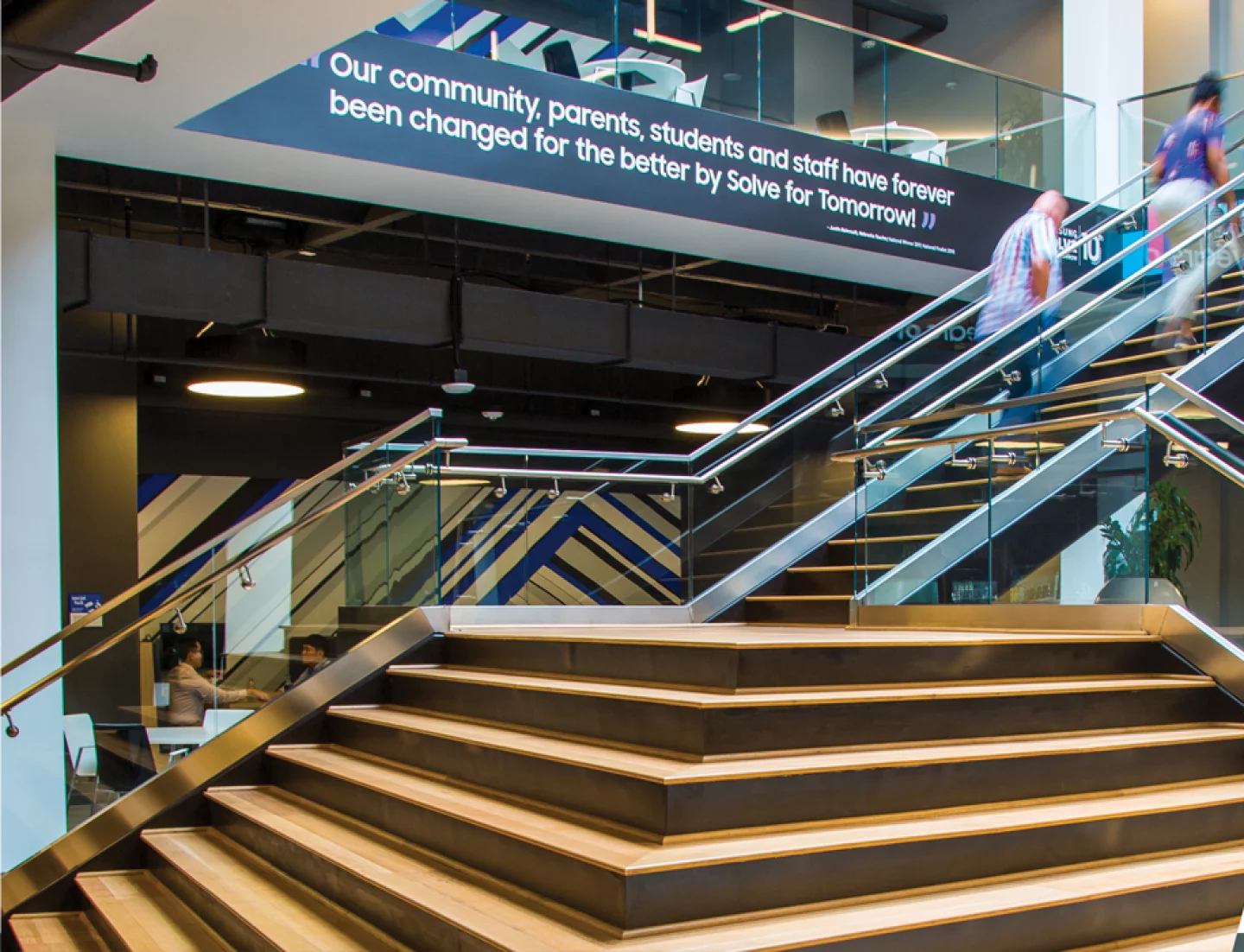

• Frameless Glass Balustrades: For balconies, staircases, and voids in commercial and residential buildings.

• Pool Fencing & Surrounds: Providing a secure, compliant barrier without compromising style.

• Wind Breaks & Privacy Screens: Used in outdoor dining areas, on decks, or as rooftop barriers.

• Internal Glass Barriers: Creating elegant, safe divisions for office fit-outs, shopping centres, and public spaces.

Glass Projects works closely with architects, engineers, and builders to integrate the Tilt-Lock system into the wider building envelope. Fixing details, glass make-up, and channel configuration are coordinated to suit the project structure, wind exposure, and intended use. Producer statements, design tables, and supporting documentation can be provided as required.
